10.1 inch HDMI LCD 1280*800 kapacitív érintőkijelző

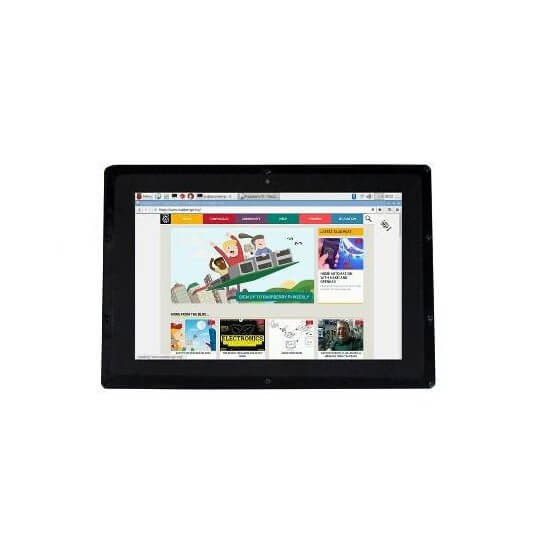

Waveshare Raspberry Pi 10.1 Inch HDMI LCD Capacitive Screen IPS Screen 1280x800 With Protective Shell

Description
his is the latest 10.1-inch screen for raspberry pi, under normal circumstances we used to match the raspberry pi, of course, it is compatible with many occasions due to its HDMI interface. Its IPS screen has 1280x800 high resolution, and this is a capacitive screen, which means high sensitivity, supports up to ten-points touch, when it works with raspberry pi, it is not required to driver support, and compatible with many systems, including win10/8/7. To avoid the problem that system is not compatible with display, not only support raspberry pi, it also supports banana pi, BB black. Backlight brightness can be adjusted, it’s conducive to lower power consumption. It comes with a bracket and acrylic shell, to avoid the exposed screen be damaged. Finally need to pay attention to the point: when you want this screen to work together with raspberry, you need to manually set the resolution, you need to edit the config.txt file of TF card root directory to set up.

Features
IPS raspberry pi screen,1280×800 high resoluti
Capacitive touch control, supports up to ten-points touch
When works with Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver freet
Supports Banana Pi, Banana Pro, comes with Lubuntu, Raspbian images
Supports BB Black, comes with Angstrom image
HDMI interface for displaying, USB interface for touch control
Back light control to lower power consumption
Working Voltage:DC 5V

Package List
10.1inch HDMI LCD (B) (with shell) x 1
Fixed support x 1
Spare screw
HDMI connector x 1
The USB cable type A public port is changed to micro public port x 2
Power gauge 5V 2.5A USB port x 1
Data CD x 1
Power adapter US/EU x 1

Raspberry Pi 10.1 Inch Capacitive Screen LCD Supports HDMI VGA And AV Interface With Protective Housing 1024x600 Resolution

Description
The LCD and Control Board
1024×600 high resolution
Capacitive touch control
When works with Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
When work as a computer monitor, supports Windows 10/8.1/8/7/XP, single touch, and driver free
Supports BB Black, comes with Angstrom image
Multi video input interfaces: HDMI, VGA, and AV(CVBS)
Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
Firmware can be upgraded to support more new features (continually updated)

Note
To use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable
BB Black: HDMI cable

Package List
10.1 inch capacitive Touch LCD (D) x 1
HDMI LCD main control board x 1
HDMI connector x 1
The USB cable type A public port is changed to micro public port x 1
40 PIN FFC line x 1
10.1 inch screen shell x 1
Screw package x 1
Shell bracket x 2
Power gauge (1)
Data CD * 1
Power adapter US/EU x 1
