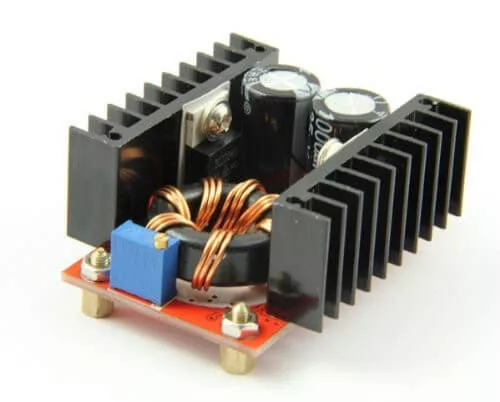

150W DC-DC 10- 32V - 12-35V Step Up konverter tápmodul

Specification:
Module Properties: non-isolated step-up module (BOOST)
Input voltage: 10-32V
Output voltage: 12-35V (adjustable)
Output Current: 10A (MAX)
Input Current: 16A (MAX) (Please enhance heat dissipation if more than 10A)
Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)
Easy to drive 65W 90W dual-core notebook.
Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45 Celsius
Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A) (For reference)
Output Ripple: 2% (MAX) 20M-bandwidth
Operating Temperature: Industrial (-40 Celsius to +85 Celsius) (ambient temperature exceeds 40 Celsius, lower power use, or to enhance heat dissipation)
Full load temperature rise: 45°c
No-load current: 25mA typical
Voltage regulation: ± 0.5
Load Regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Size: 65mm x 47mm x 23.5mm
Short circuit protection: None (Please Install fuses and protection circuits at Input port.)
Input Reverse Polarity Protection: None (Please Series diode at the input port.)

Applications:
DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V (adjustable freely), However, the output voltage can not be less than the input voltage
Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need Boost charger.You can use the 12V power supply to charge battery more than 12V, for example, 24V battery.
