8 csatornás szilárdtest relé modul

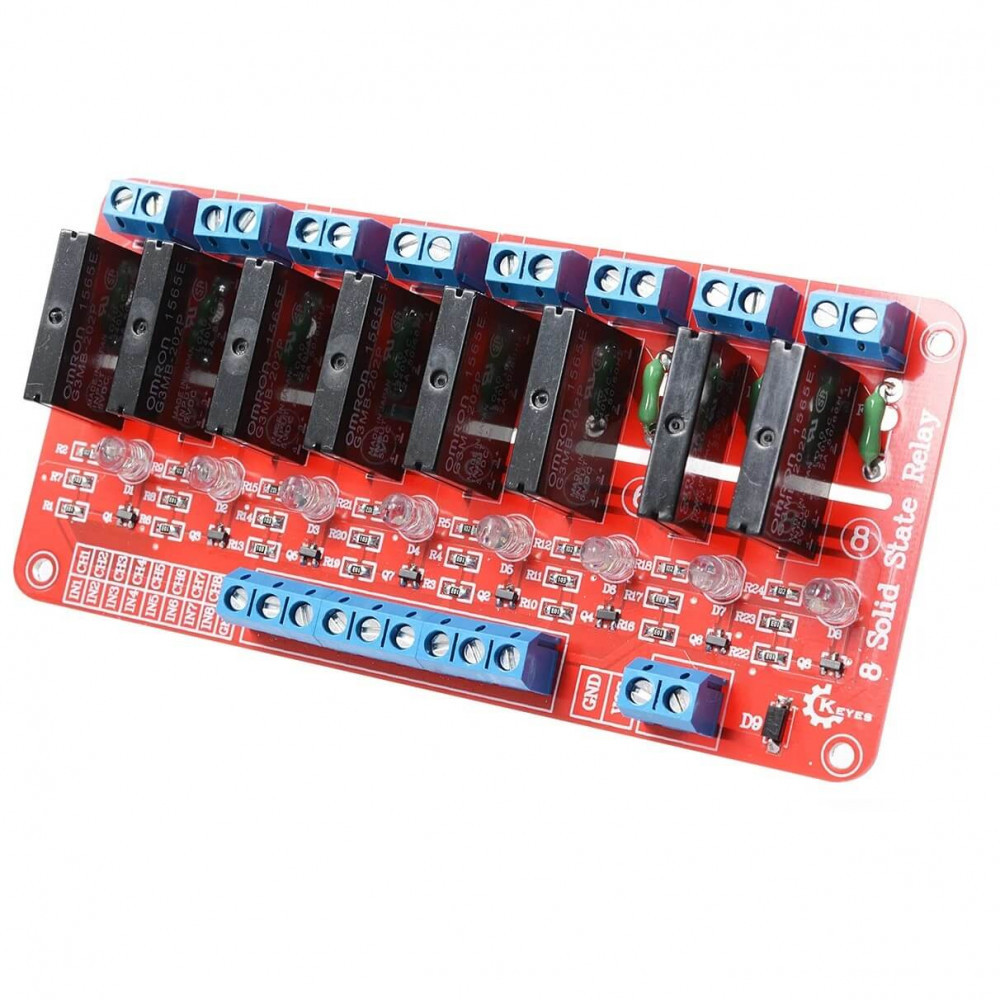

Eight Way Solid State Relay Module For Arduino

Description:
5V Omron solid state relays 240V / 2A, output with resistive fuse 240V / 2A
Input Power: 5VDC (160MA)
Control signal input voltage: (0-2.5V low state relay OFF ) (3-5V state high relay ON )

Feature:
Voltage:5V
Quiescent current: 0 mA
Operating current: 1 WAY:13.8mA .. 2 WAY: 26.8mA . 3 WAY: 37mA . 4 WAY: 48mA . 5 WAY: 59mA . 6 WAY: 70mA . 7 WAY: 81mA . 8 WAY: 90mA .
Trigger Voltage: 3.3-5V
Trigger current: 2mA
DC +: positive power supply (according to the relay voltage supply)
DC-: negative power supply
CH1: relay module signal triggering end (High trigger effective)
CH2: relay module signal triggering end (High trigger effective)
CH3: relay module signal triggering end (High trigger effective)
CH4: relay module signal triggering end (High trigger effective)
CH5: relay module signal triggering end (High trigger effective)
CH6: relay module signal triggering end (High trigger effective)
CH7: relay module signal triggering end (High trigger effective)
CH8: relay module signal triggering end (High trigger effective)
