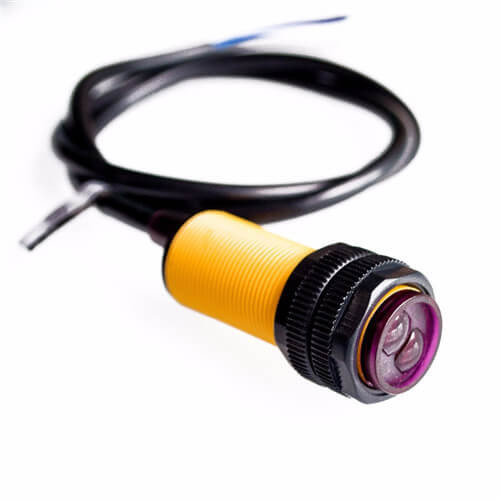

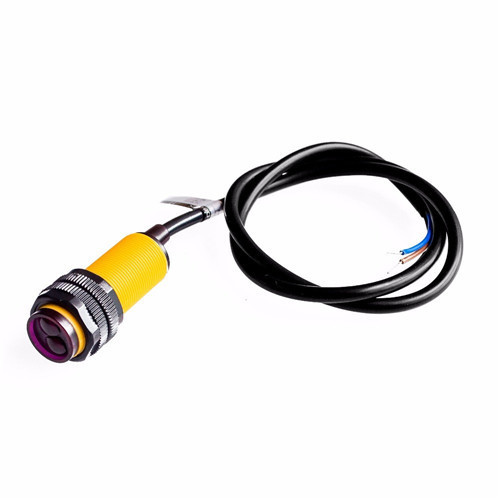

E18-D80NK szabályozható infravörös érzékelő kapcsoló 3-80cm

E18-D80NK Adjustable Infrared Sensor Switch 3-80cm for Arduino Infrared Sensor Switch

Electrical Characteristics:
U: 5VDC
I: 100mA
Sn: 3-80CM
Diameter: 17MM
Sensor length: 45MM
Lead Length: 45CM

Applications:
1, the production line goods automatic counting device
2, multi-reminder
3, maze robots
4, kitchen automation system
5, anti-theft security system, etc.

Photoelectric sensors (photoelectric switch) NPN normally open
Model: E18-D80NK.

Photoelectric switch E18 technical parameters:
1, the output current DC / SCR / Relay Control output: 100mA / 5V power supply
2, current consumption DC <25mA
3, response time <2ms
4, point angle: ≤15 °, adjustable effective distance 3-80CM
5, detect objects: transparent or opaque
6, the working environment temperature: -25 C ~ + 55 C
7, the standard sensing object: sunlight 10000LX less incandescent 3000LX the following
8, Case Material: Plastic
