Leírás és Paraméterek

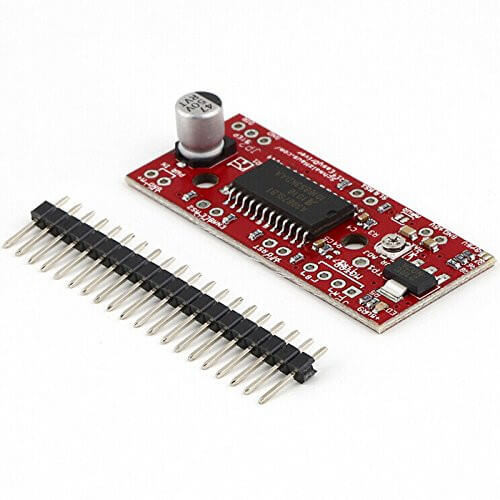

The EasyDriver is a simple to use stepper motor driver, compatible with anything that can output a digital 0 to 5V pulse (or 0 to 3.3V pulse if you solder SJ2 closed on the EasyDriver).
Product Features
A3967 microstepping driver
MS1 and MS2 pins broken out to change microstepping resolution to full, half, quarter and eighth steps (defaults to eighth)
Compatible with 4, 6, and 8 wire stepper motors of any voltage
Adjustable current control from 150mA/phase to 750mA/phase
Power supply range from 7V to 30V. The higher the voltage, the higher the torque at high speeds
Size: 4.8cm x 2cm. Note: Do not connect or disconnect a motor while the driver is energized. This will cause permanent damage to the A3967 IC.
