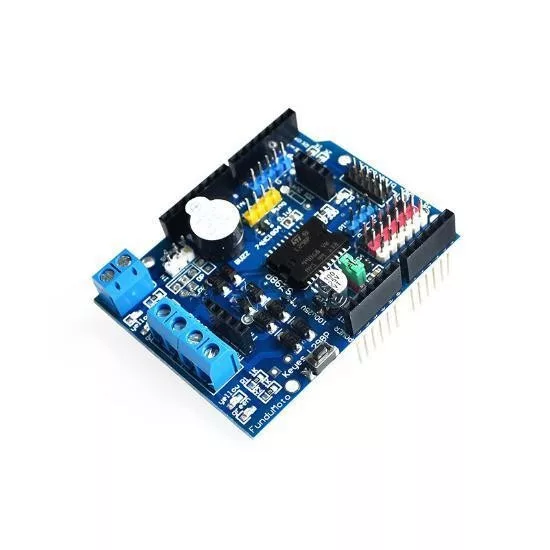

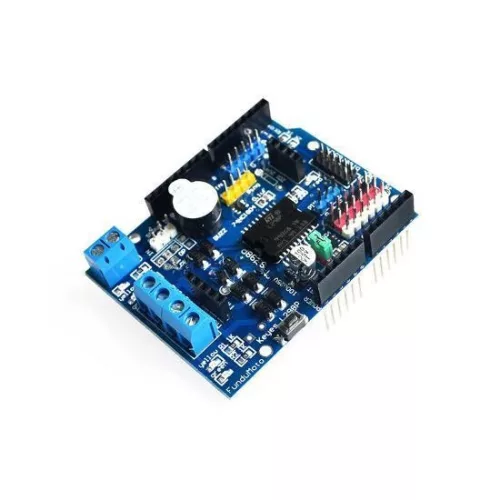

L298P Motor Shield Driver

Termék leírás

1 logical part of the input voltage VD: 5V2.-driven part of the input voltage VS: VIN Input 6.5 ~ 12V, PWRIN 4.8 ~ 35V input3 logical part of the work current Iss: <36mA4.-driven part of the operating current Io: <2A5 maximum power dissipation: 25W (T = 75 Celsius)6. control signal input level: High 2.3V low -0.3V7 Working temperature: -25 + 130 Celsius8 hardware interface: 5.0mm pitch terminal9 belt clip and can be controlled via front row access signal10. Drive Type: Dual power H-bridge driver11 Pin occupancy: D4 ~ D7 direct drive motor12 supports PWM / PLL mode motor speed control
13 Size: 68 * 53mm
