MEGA Proto prototípus Shield V3.0+170 pontos próbapanel

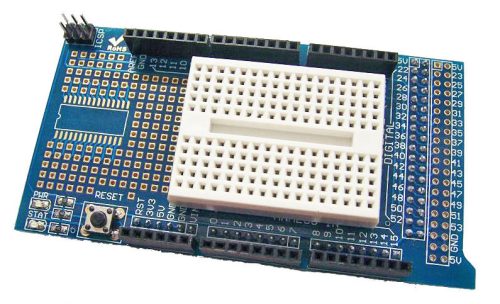

MEGA Proto Prototype Shield V3.0+170pts Breadboard For Arduino Mega

Overview
The Prototyping Shield makes it easy for you to design custom circuits. You can solder parts to the prototyping area to create your project, or use it with a small solderless breadboard (not included) to quickly test circuit ideas without having to solder. It's got extra connections for all of the I/O pins, and it's got space to mount through-hole and surface mount integrated circuits. It's a convenient way to make your custom circuit and into a single module.

Summary
A wide prototyping area with some extra features:
1.0 pinout
1 Reset button
MEGA Proto Prototype Shield V3.0+170pts Breadboard For Arduino Mega

Overview:
The Prototyping Shield makes it easy for you to design custom circuits. You can solder parts to the prototyping area to create your project, or use it with a small solderless breadboard (not included) to quickly test circuit ideas without having to solder. It's got extra connections for all of the I/O pins, and it's got space to mount through-hole and surface mount integrated circuits. It's a convenient way to make your custom circuit and into a single module.

Summary:
A wide prototyping area with some extra features:
1.0 pinout
1 Reset button
1 ICSP connector
14 pin SMD footprint (50 mils pitch)
20 pin Through Hole footprint (100 mils pitch)



Power:
The Proto Shield bring the power from the Arduino standard 5V and GND pins to the two power bus rows placed between the Through Hole package footprint, which can be used for powering the DIP sockets, or for power and ground rows.
SPI Connection
The ICSP connector available on the shield hove his connections made directly to the SPI pins.
1: (the one with the smal pointer sign) MISO connected to D12
2: +5V
3: SCK connected to D13
4: MOSI connected to D11
5: SS connected to D10
6: GND
For more information about the SPI communication see the SPI library.

Physical Characteristics:
The maximum length and width of the Proto Shield PCB are 2.7 and 2.1 inches respectively. Three screw holes allow the shield to be attached to a surface or case. Note that the distance between digital pins 7 and 8 is 160 mil (0.16"), not an even multiple of the 100 mil spacing of the other pins.

Package Included:
1pcs for Arduino MEGA Proto Prototype Shield V3 Board 1pcs PCB Breadboard 170 Tie Points
