MK3 ALU-fűtött asztal

Ár:
7.998 Ft (6.298 Ft + ÁFA)
Menny.:db
Cikkszám: CHGS00042
Elérhetőség: Raktáron
Várható szállítás: 2023. április 05.

Leírás és Paraméterek

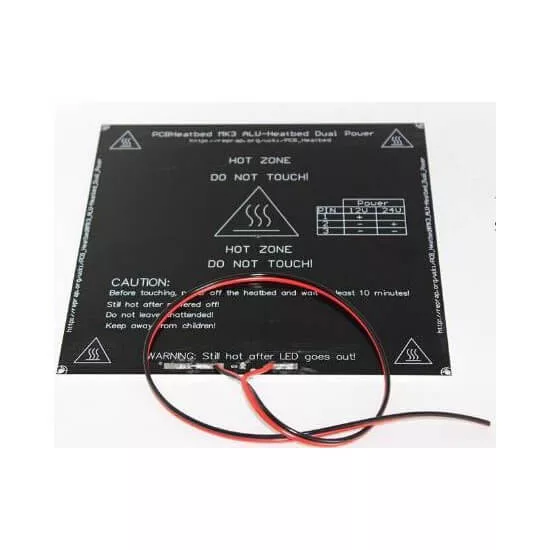

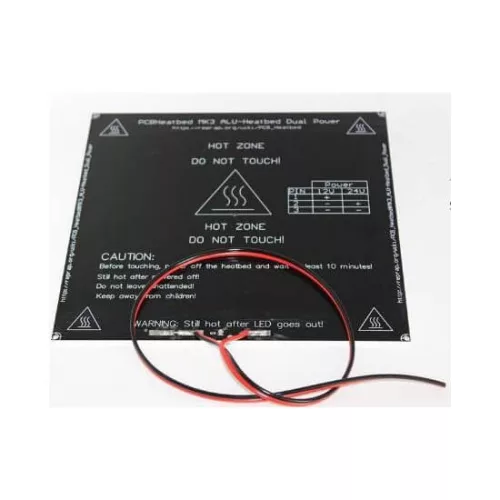

MK3 ALU-fűtött asztal 60cm vezetékkel, fekete LED-del és ellenállással szerelve

The new MK3 Aluminium heated beds have a few advantages over the older MK2 and MK2B heated bed designs.

The aluminium backing in the MK3 acts as a thermal buffer, building up heat much more evenly than the older PCB designsBecause of this aluminium layer, the MK3 is also flat enough to print directly on - no need for a separate piece of glass!These heated beds are hooked up the same way as the older MK2 designs - the board accepts 12 or 24V power, simply solder your wires to the pads indicated. There's space for SMD LEDs and a resistor, and a hole in the centre for a thermistor.The board mounts the same way as the older designs - there's a screw hole in each corner in the same spacing as the MK2 boards, plus an extra screw hole between the solder pads to allow for 3-point mounting. 3-point mounting makes it much easier to get the bed levelled correctly, but your printer will need a matching screw hole in the right spotWiring Method:12V connection: a cable connected to one another while connected to a wire 2,3.24V connection: a cable connection 2, in addition to a cable connection 3 (1 left unconnected).The new version of the circuit, whether connected 12V, or 24V

Material 3 mm aluminium. No need for glass plate, this is better for faster prints.
Copper on the board 1 layer 35 μm
Dual power 12V/24V
Mounting 3 point, this makes the leveling easier. First level the side with 2 holes and fix in place, then level the side with one hole.
Resistance 1.4-1.6 Ohm (12 V)
5-5.4 Ohm (24 V)
Time for heatup to 100 °C 2 min.
Max. temperature 180 °C
