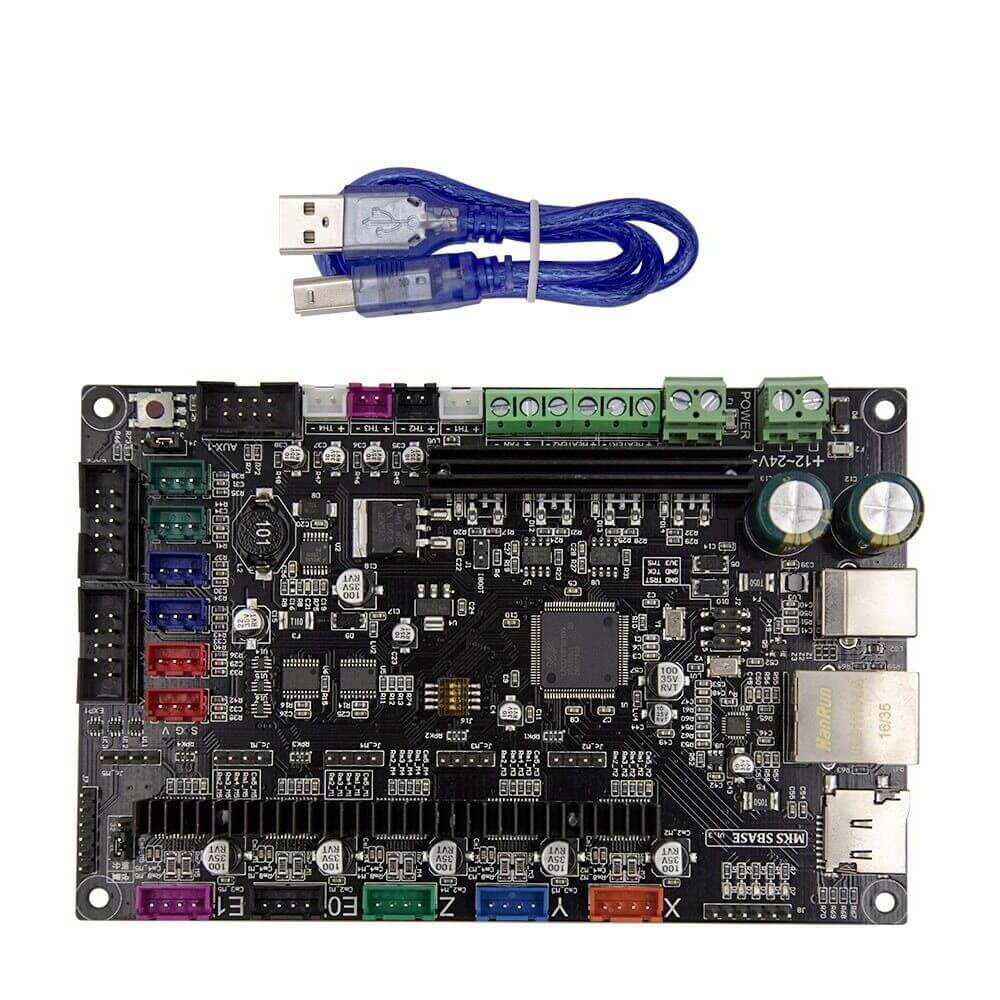

MKS SBASE V1.3 32-bit Open Source Smoothieboard 3D nyomtató vezérlőpanel

47.400 Ft (37.323 Ft + ÁFA)
Cikkszám: CHGS00095
Elérhetőség: Raktáron
Várható szállítás: 2023. április 05.

Leírás és Paraméterek


  • Using 32bit 100M Cortex-M3 MCU-LPC 1768, and improve its performance highly
  • Support highly modular open source firmware Smoothieware, easy for secondary development, eliminating worries can not grasp the core code
  • Support network function, then proceed remote control via IE Explorer
  • Using DRV8825 stepper driver which supports 32-microstep and far exceeding the 4988 performance, the use of SOP package, with excellent cooling
  • Currents of the stepper motor can be set directly, which can avoid the damage


  • Using high quality FR-4 4 layers PCB and special design for cooling
  • Using professional power chip, support 12V-24V DC input
  • Good to work with 12864LCD and MKS TFT touch screen
  • Fix temperature problem
  • Add thermocouple Pins( can't be used with 12864lcd together)
  • Create some pins P1.22 P1.23 P2.12 P2.11 P4.28 for developing
  • Extend endstop power 3.3V / 5V
  • Preassemble two big heatsinks
  • Net Weight:125g
  • Dimensions:145x95x22mm

How to use:

  • Copy “firmware.bin” and “config” from config file to SD card (SD smaller than 64Gb).Need to change config name .Such as: Change config-mks-xyz into config.txt
  • Adjust config.txt according to the configuration
  • Refer to MKS-SBASE PIN , make correction connection. Such as stepper motor ,endstops
  • Plug the SD card to the board, after power on, it will automatic update
  • If connect computer with USB, need to install the driver (Refer to below specification )

Install the Driver:

  • First, you should upload the zip file
  • Then, plug the USB to computer . Next, enter device manger
  • Then will turn up COM after install successfully

Download Firmware and Update:

  • Please upload firmware (https://github.com/makerbase-mks/MKS-SBASE )
  • Copy configuration (including firmware.bin and config.txt) to SD card, insert to the board and power on, it will automatic update
  • After successful updated, the file name will turn into firmware.cur.

Package Controller:

  • 1x MKS-SBASE V1.3 Controller Board
  • 1xUSB Cable
