Multifunkciós Shield

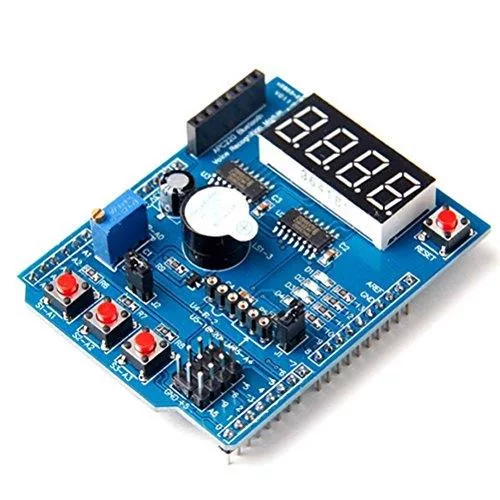

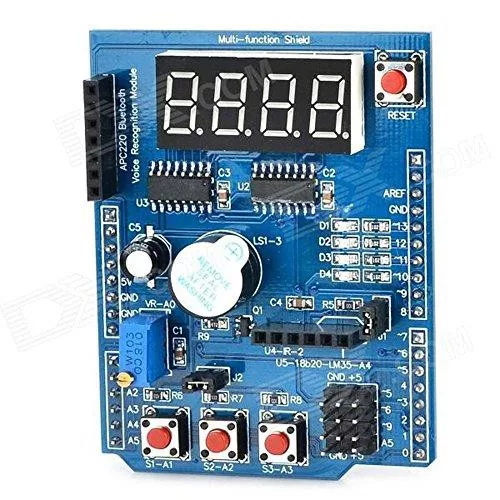

Arduino Multi-Function Shield ProtoShield Multi-functional Expansion Board Sensor Shield Module

Product Features:
This board can seamlessly connect with 2009 UNO LENARDO 2560 and other Mainstream Controller. This module is an open source code base with the Simple i/o platform. Arduino can be used to complete the development of electronic components such as Switch or Sensors or other controller, LED, stepper motor, or other output device.
1. This board can seamlessly connect with 2009 UNO LENARDO 2560 and other Mainstream Controller.
2. 4 LED indicator, it can convenient for Debugging.
3. DS18B20 temperature sensor interface
4. LM35 temperature sensor interface
5. 3296 precision adjustable potentiometer, with analog input port.
6. Integrated infrared receiver
7. Four digital LED Segment Displays (using 74HC595 driver provincial IO learning SPI).
8. Three separate buttons, a reset button. It can convenient for experiments (HMI).
9. With Buzzer
10. Bluetooth, wireless interfaces, voice module, voice recognition module can be used for wireless communication experiment
11. Servo interface, easy for drive servos.
12. Infrared detection interface for easy docking and infrared, to achieve human traffic statistics.

Product Description:
Arduino Multi-Function Shield ProtoShield For Arduino UNO LENARDO MAGE2560. This module is an open source code base with the Simple i / o platform, and with the use of a similar java, C language development environment. So that you can quickly use the Arduino language and software such as Flash or Processing ... to make interactive works. Arduino can be used to complete the development of electronic components such as Switch or Sensors or other controller, LED, stepper motor, or other output device. Arduino can also operate independently as a software platform that can communicate with, for example, said: flash processing Max / MSP VVVV or other interactive software ..., Arduino development IDE interface is based on open source principles, allows you to download free of charge to develop more and order surprisingly interactive works.
