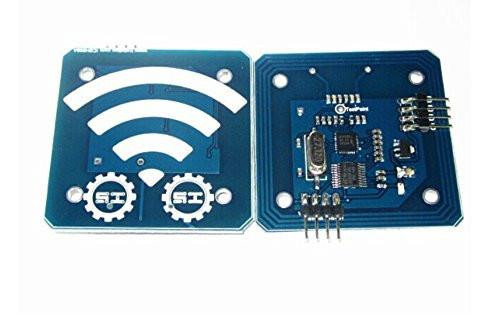

RFID kártya Író-olvasó modul RC522 13.56 MHZ

Description:
1).MF RC522 is applied to 13.56MHz contactless card reader communication chips a member of the high level of integration. Is NXP, for "Three Tables" application introduced a low-voltage, low-cost, small size and non-contact chip card reader is a good choice for smart meters and portable handheld devices developed.

2).MF RC522 using advanced modulation and demodulation concept completely integrated in all types of passive 13.56MHz contactless communication methods and protocols. Support ISO14443A multilayer applications. The transmitter portion of its internal communications can drive the reader antenna and ISO 14443A/MIFARE cards and answering machine, no other circuits. The receiver part provides a robust and effective demodulation and decoding circuitry for processing signals ISO14443A compatible transponders. The digital part handles ISO14443A framing and error detection (Parity & CRC). In addition, it supports fast CRYPTO1 encryption algorithm used to verify the MIFARE products. MFRC522 support MIFARE? Higher-speed non-contact communication, two-way data transfer rates up to 424kbit/s.

3).As a new member of the highly integrated 13.56MHz card reader series chip family, MF RC522 MF RC500 and MF RC530 and there are many similarities, but also have many other features and differences. It is the communication between the host and the serial communication using fewer connections, and can be based on different user needs to select one mode SPI, I2C or serial UART (similar to RS232), helps to reduce the connection, reducing the volume of PCB board and reduce costs.

Specification:
Description Model: MIFARE RC522
Sleep Current: <80uA
Peak current: <30mA
Operating Frequency: 13.56MHz
Read Range: 0～45mm
Interface: UART TTL
Baud Rate: 115200
Data transfer rate: Maximum10Mbit/s
Physical Characteristics: Size: 50mm×50mm
Ambient operating temperature: Celsius-20-80
Storage Temperature: Celsius-40-85
