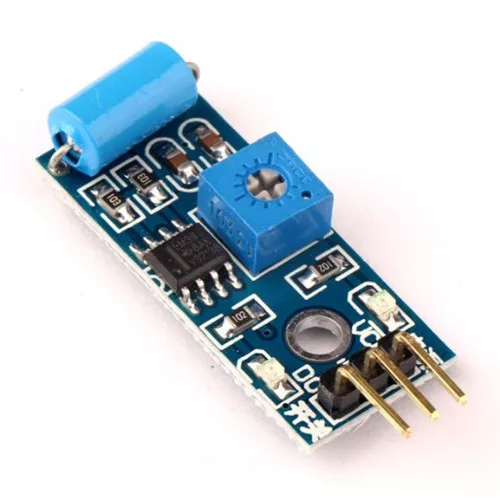

SW-420 zárt alapállású vibráció érzékelő modul

Uses:
For a variety of shock triggering effect, reported stolen alarm, smart car, earthquake alarm, motorcycle alarm. The module normally open type vibration sensor module compared to shock triggered longer can drive relay module

Module Features:
1. using SW-420 normally closed type vibration sensor.
2. the comparator output signal is clean, good waveform, driving ability, more than 15mA
3. the working voltage of 3.3V-5V
4. the output format: digital switching outputs (0 and 1)
5. a fixed bolt holes for easy installation
6. small PCB board size: 3.2cm x 1.4cm
7. using a wide voltage LM393 comparator

Module for use:
1. no shock, vibration switch was closed conduction state, output of low output, the green indicator light;
2. shock, vibration switch instantly disconnected, the output-side output high, the green light does not shine;
3. the output can be directly connected to the microcontroller through the microcontroller to detect high and low, thereby detecting whether the vibration environment, played the role of the police
