Tank Robot Smart Car alváz
24 128 Ft
(18 998 Ft + 27% ÁFA)
Cikkszám:
EHGS00974
Nincs raktáron
Saját raktáron
0 db
Raktáron lévő termékeinket 1-2 munkanap alatt kézbesítjük!
Termék leírás

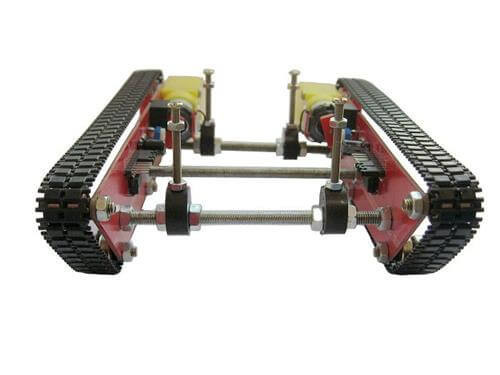

Tank Robot Smart Car Chassis+Acrylic Plate Track Integrated 2 Motors for Arduino
Feature:
L9110 Connected and Included
Operating Voltage: 3V - 12V
Opto Coupler Speed Sensor is Included
Chassis Kit, Belts, Motors Are Included
Arduino Compatible
Motor Operating Voltage: 3V - 8V
Motor Maximum Torque: 1.5kg.cm at 7.2V
Motor Speed Without Load: 250rpm/m at 7.2V
Motor Load current: 250mA at 7.2V Pin Description:
GND: Ground Connection of LM393 and Speed Sensor
VCC: Power Connection of LM393 and Speed Sensor
IA & IB: Motor Driver L9110 Input
SPEED: Output of Speed Sensor
M.P-: -ve Power Supply of L9110 and Motor
M.P+: +ve Power Supply of L9110 and Motor
