TB6560 3A vezérlőpanel CNC 1 tengely léptetőmotor vezérlő

Ár:
5.939 Ft (4.676 Ft + ÁFA)
Menny.:db
Cikkszám: EHGS01350
Elérhetőség: Raktáron
Várható szállítás: 2023. április 05.

Leírás és Paraméterek

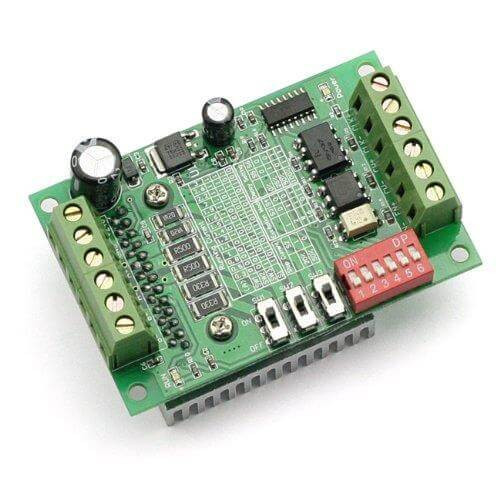

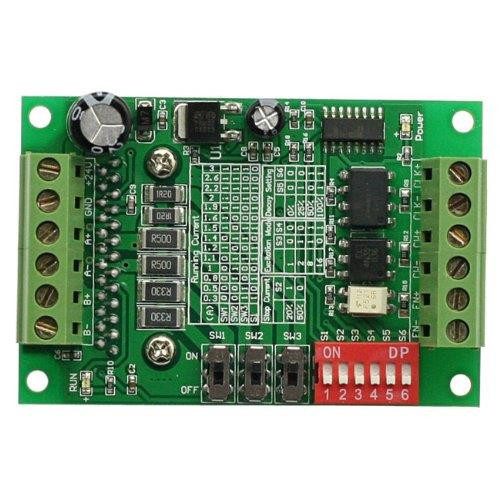

CNC Router Single 1 Axis 3A TB6560 Stepper Motor Driver Board Controller Kit

Features:

Working voltage DC 10V-35V. Recommended to use a switching power supply DC24V power supply.

6N137 high-speed optical coupling, guarantee high speed without losing step.

Using the TB6560AHQ chip with low voltage shutdown, overheating stop and overcurrent

protection circuit to ensure optimal performance.

Rated maximum output: ± 3A, peak 3.5A.

For two-phase within 42,57 stepping 3A / four-phase / of line four / six-wire stepper motor, and is not suitable for more than 3A stepper motor.

Automatic half current function.

Subdivision: whole step, half-step, step 1/8, 1/16 step, a maximum of 16 subdivisions.

Specifications:

Working voltage:DC 10-35V

Rated maximum output: ± 3A, peak 3.5A.

Main color:Green

Size:75 x 50 x 33mm

Net weight:83g

Package weight:93g
